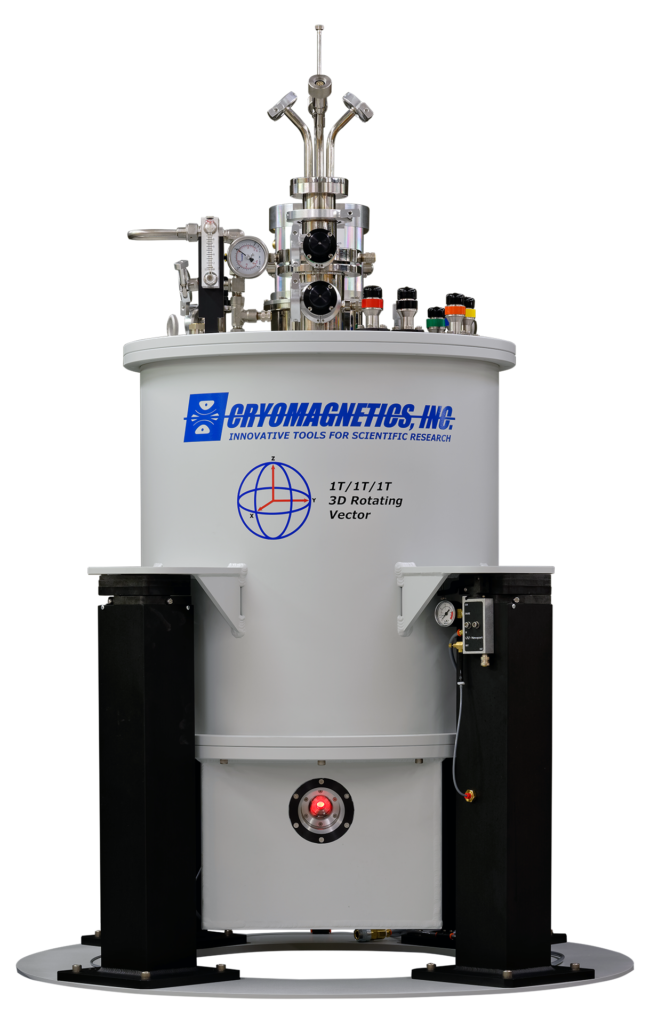

1-1-1 Tesla C-Mag 3-Axis Optical Superconducting Magnet System

C-Mag Vari-111 Optical, 1-1-1 Tesla 3-Axis Optical Cryogen-FREE superconducting magnet system cooled by a single Pulse Tube cryocooler to conductively cool the magnet and cryostat as well as cooling a secondary closed loop helium circuit used for controlling the sample temperature. Optical access in all horizontal magnetic axes. Pneumatic legs allow for effective dampening of terrestrial vibration.

Customer Location: Czech Republic

• 1-1-1 Tesla 3-Axis Superconducting Magnet with 1 Tesla Spherical Vector Rotation

• +/- 0.5% Z-axis Homogeneity Over 1cm DSV

• +/- 1.0% X and Y-axis Homogeneity Over 1cm DSV

• 47.5mm ID, <1.8K-300K Sample Space

• f2.53 (220) Axial and Perpendicular Optical Path

• 7.0 inch Window to Field Center in All Horizontal Axes

• Suprasil Quartz Windows, Customer Upgradable

• Single, Sumitomo 1.0W Pulse-Tube Cryocooler, Remotly Mounted

Delivery Date: January, 2020
