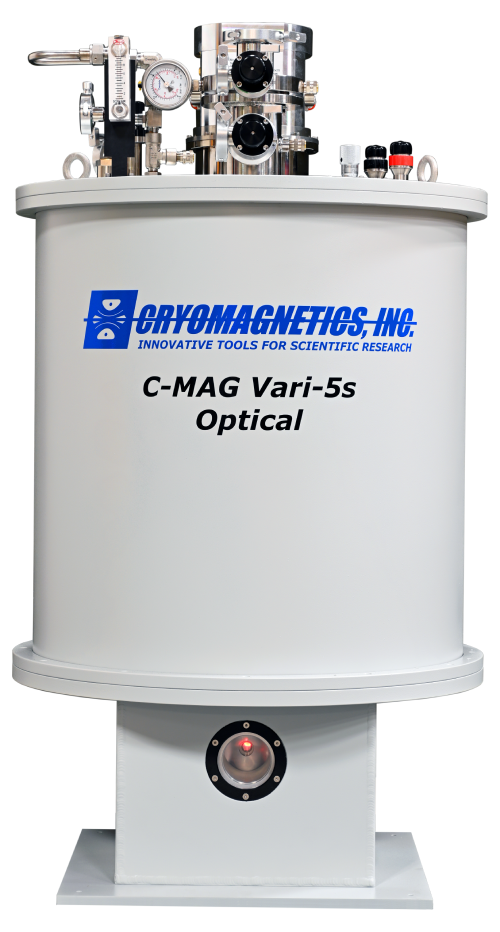

5 Tesla C-Mag Split Pair Optical Superconducting Magnet System

C-Mag Vari-5S-Optical, 5 Tesla Split Pair Optical Cryogen-FREE superconducting magnet system cooled by a single Pulse Tube cryocooler to conductively cool the magnet and cryostat as well as cooling a secondary closed loop helium circuit used for controlling the sample temperature. Optical access both axial and perpendicular to the magnetic Axis.

Customer Location: Japan

• 5 Tesla Split Pair Superconducting Magnet.

• +/- 0.5% Homogeneity over 1cm DSV

• 38mm ID, <1.6K-300K Sample space.

• +/- 12.5o (25o total viewing angle) Axial optical path and Perpendicular optical paths.

• 15mm Inner-most optical window to allow maximum parallel viewing path.

• Single, Sumitomo 1.0W Pulse-Tube Cryocooler.

Delivered: March, 2021
