5 Tesla Split-Pair Superconducting Magnet System with Turret
By: Steve Short
June 18, 2020

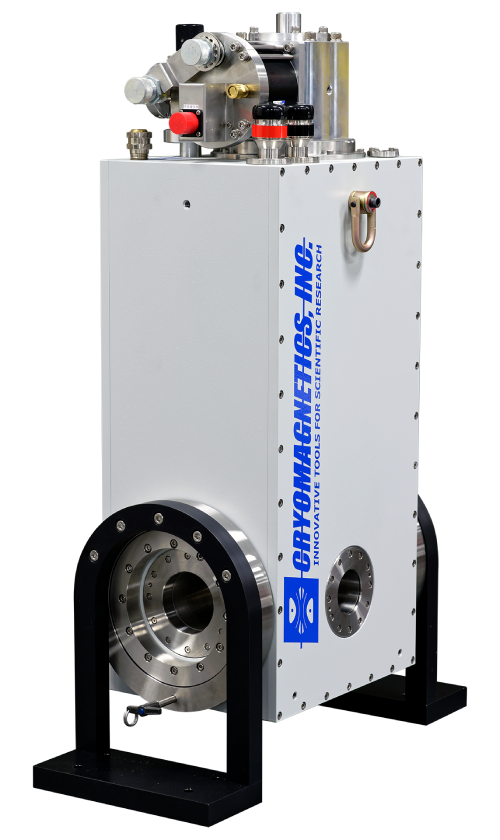

5 Tesla Split Pair Cryogen-FREE superconducting magnet system. Compact design and multi-position turret allow for convenient access to both radial and axial room temperature bores.
Customer Location: California, USA
5 Tesla field, 0.40% Homogeneity over 1cm DSV.
Cryogen-FREE, Split pair design
70mm Axial x 51mm Perpendicular through ports
250mm x 300mm x 780mm Approximate dimensions
Single 1.0 Watt Gifford McMahon Cryocooler.
Designed for operation in multiple orientations.
Delivered: June, 2020
