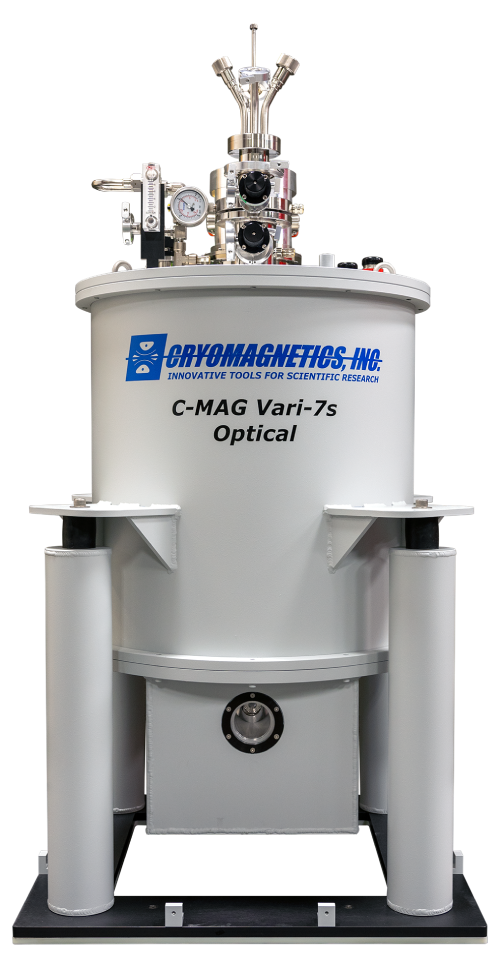

7 Tesla Optical C-Mag Superconducting Magnet System with Diamond Windows

C-Mag Vari-7S-Optical, 7 Tesla Split Pair Optical Cryogen-FREE superconducting magnet system cooled by a single Pulse Tube cryocooler to conductively cool the magnet and cryostat as well as cooling a secondary closed loop helium circuit used for controlling the sample temperature. Optical access both axial and perpendicular to the magnetic axis feature diamond windows for measurement over a wide spectral range. Bottom mounted window allows for access to the Z-axis. Cryostat cradle designed for precision alignment on optical table.

Customer Location: California, USA

• 7 Tesla Split Pair Superconducting Magnet

• +/- 0.3% Homogeneity over 1cm DSV

• 38mm ID, <1.6K-300K Sample space

• f2.4 Axial optical path, f3.1 Perpendicular optical path

• Single, Sumitomo 1.0W Pulse-Tube Cryocooler

Delivered: July, 2020
