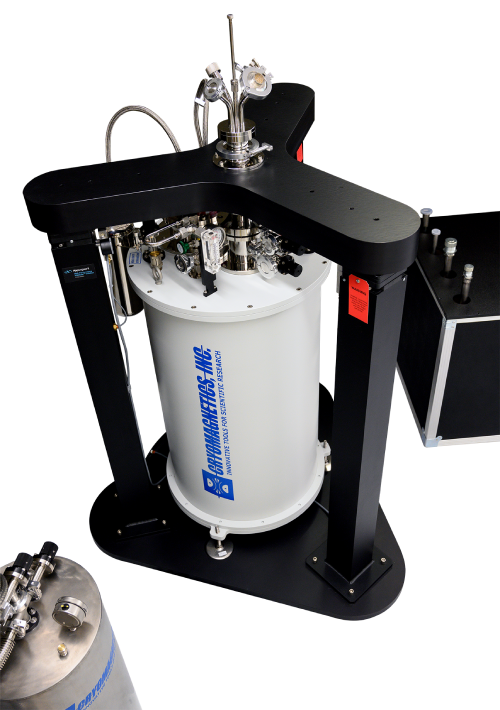

9 Tesla C-Mag Magnet System with Low Vibration Platform
By: Steve Short
June 30, 2020
Low Vibration 9 Tesla Cryogen-FREE superconducting magnet system ideal for vibration sensitive methods such as Scanning Probe microscopy. The magnet and cryostat are cooled via a single cryocooler while a secondary closed loop helium circuit is utilized for maintaining the bore temperature. The massive insert platform is mechanically decoupled from cryostat via pneumatic legs and flexible edge welded bellows. System vibration is further reduced through the bedding of compressor and vacuum lines.
Customer Location: Maryland, USA
49mm Vertical Bore.
9 Tesla, +/- 0.1% in 1cm DSV Magnetic Field.
Single, Cryomech Pulse Tube Cryocooler Remotely Mounted.
Low-Vibration Sample Platform
Delivered: June, 2020
